#include <WeaponMemberNode.h>

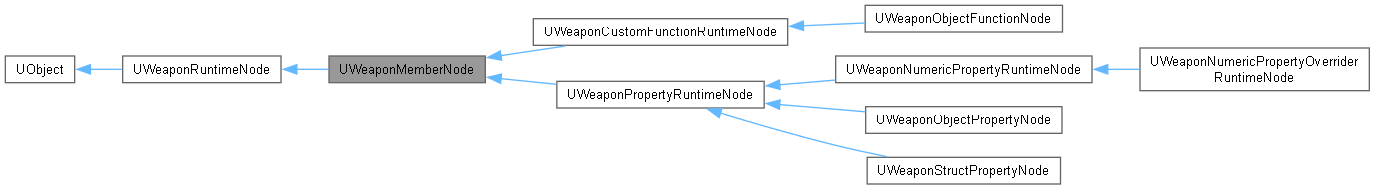

Inheritance diagram for UWeaponMemberNode:

Collaboration diagram for UWeaponMemberNode:

Classes
struct	FArgumentsContainer

Protected Types
enum class	ELoadMember : uint8 { None , FromName , FromMemberRef = None }

Protected Member Functions
template<typename Member >
FORCEINLINE ELoadMember	LoadMember (Member *&LoadTo, const FMemberReference &MemberRef, const FName FallbackName) const

template<typename Member >
FORCEINLINE ELoadMember	LoadMemberChecked (Member *&LoadTo, const FMemberReference &MemberRef, const FName FallbackName) const

Protected Member Functions inherited from UWeaponRuntimeNode
virtual void	ExecuteNode ()

void	FixInvalidPinsConnections ()

virtual void	GetNodeDebugString (TArray< FString > &Strings) const

virtual void	PostExecuteNode ()

virtual void	PreExecuteNode ()

void	RemoveDuplicatedConections ()

void	UpdateNodeFlowDebugString ()

Additional Inherited Members
Public Member Functions inherited from UWeaponRuntimeNode
template<typename Fmt , typename ... Args>
void	AbortExecution (Fmt &&Format, Args &&... args) const

void	AbortExecution (FString &&Reason="") const

virtual void	ClearCache () const

FORCEINLINE void	Execute ()

FORCEINLINE_DEBUGGABLE TArray< UWeaponRuntimePin * >	GetAllPins () const

class UWeaponAssetCharacteristics *	GetCharacteristics () const

const class UWeaponAssetCharacteristics *	GetCharacteristicsCDO () const

const class UWeaponAssetCharacteristics *	GetDefaultCharacteristics () const

TSubclassOf< UWeaponAssetCharacteristics >	GetDefaultCharacteristicsClass () const

const struct FWeaponExecutionContext &	GetDefaultExecutionContext () const

const struct FWeaponExecutionContext &	GetExecutionContext () const

class UWeaponRuntimeGraph *	GetGraph () const

class UWeaponRuntimeGraph *	GetGraphAnyContext () const

virtual FORCEINLINE UWeaponRuntimePin *	GetInput (int32 Index=0) const

FORCEINLINE UWeaponRuntimePin *	GetLastInput () const

virtual FORCEINLINE UWeaponRuntimePin *	GetMainInput () const

virtual FORCEINLINE UWeaponRuntimePin *	GetMainOutput () const

FORCEINLINE UWeaponRuntimeNode *	GetNodeFromInput (int32 InputIndex) const

FORCEINLINE void	GetNodeFromInput (int32 InputIndex, TArray< UWeaponRuntimeNode * > &ConnectedNodes) const

UWeaponRuntimeNode *	GetNodeFromInput (UWeaponRuntimePin *FromPin) const

void	GetNodeFromInput (UWeaponRuntimePin FromPin, TArray< UWeaponRuntimeNode > &ConnectedNodes) const

virtual FORCEINLINE UWeaponRuntimePin *	GetOutput (int32 Index=0) const

UWeaponRuntimePin *	GetPinByName (const FName &PinName, const TOptional< bool > &OptionalInputOnly) const

UWeaponRuntimePin *	GetPinConnection (const UWeaponRuntimePin *Pin, int32 ConnectionIndex=0) const

FORCEINLINE UWeaponRuntimePin *	GetPinConnection (int32 Pin, int32 ConnectionIndex=0) const

FORCEINLINE const TArray< UWeaponRuntimePin * > &	GetPinConnections (const int32 Pin=0) const

const TArray< UWeaponRuntimePin * > &	GetPinConnections (const UWeaponRuntimePin *Pin) const

virtual void	GetValidPin (TArray< UWeaponRuntimePin * > &Pins)

UObject *	GetWorldContext () const

FORCEINLINE bool	HasInput () const

FORCEINLINE bool	HasOutput () const

virtual void	Init ()

bool	IsAborting () const

void	Reset ()

Public Attributes inherited from UWeaponRuntimeNode
TArray< UWeaponRuntimePin * >	InputPins

TArray< UWeaponRuntimePin * >	OutputPins

Protected Attributes inherited from UWeaponRuntimeNode
FString	NodeFlowDebugString

Detailed Description

Base class for nodes that access Characteristics members.

Member Enumeration Documentation

◆ ELoadMember

enum class UWeaponMemberNode::ELoadMember : uint8

strongprotected

Enumerator
None
FromName
FromMemberRef

Member Function Documentation

◆ LoadMember()

template<typename Member >

FORCEINLINE ELoadMember UWeaponMemberNode::LoadMember	(	Member *&	LoadTo,
		const FMemberReference &	MemberRef,
		const FName	FallbackName ) const

inlineprotected

Attempts to resolve a member from reference or name, using unchecked casting.

◆ LoadMemberChecked()

template<typename Member >

FORCEINLINE ELoadMember UWeaponMemberNode::LoadMemberChecked	(	Member *&	LoadTo,
		const FMemberReference &	MemberRef,
		const FName	FallbackName ) const

inlineprotected

Same as LoadMember but uses checked casting for stricter type validation.
